Scripting Example: Mini swirl flowers x6

This is an advanced feature: see Scripting Explained.

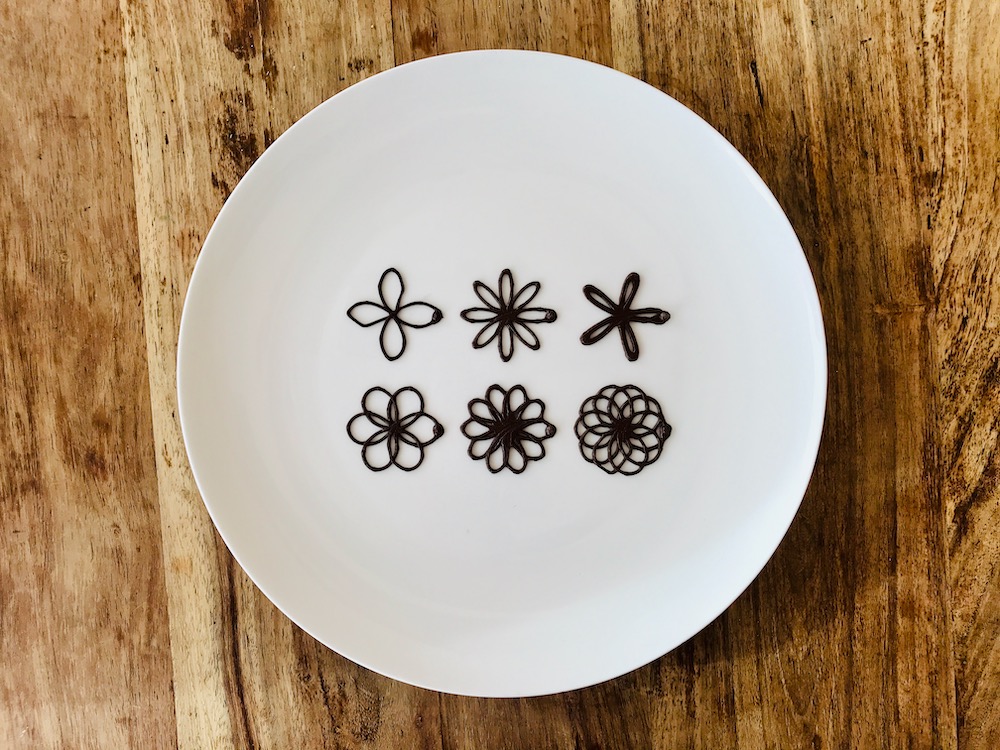

To make this print:

Use this script:

const rose = (centerX, centerY, stepCount, turns, n, d, A) => {

  var results = [];

  var k = n / d;

  var stepSize = turns * 2 * Math.PI / (stepCount);

  for (var theta = 0; theta < d * turns * 2 * Math.PI; theta += stepSize) {

    var x = centerX + A * Math.cos(k * theta) * Math.cos(theta);

    var y = centerY + A * Math.cos(k * theta) * Math.sin(theta);

    results.push(x, y);

  }

  return results;

};

foodini.useIngredient(ingredients[0]);

var X = 80, Y = 60, SIZE = 20, STEPS = 200, TURNS = 1;

[[2,1], [4,1], [5,1]].forEach((nd, i) => {

  const pts = rose(X + 2 * (SIZE + 5)* i, Y, STEPS, TURNS, nd[0], nd[1], SIZE);

  foodini.drawPolyline(pts,false,false);

});

Y += 2 * (SIZE + 5);

[[3,2],[5,2], [5,4]].forEach((nd, i) => {

  const pts = rose(X + 2 * (SIZE + 5)* i, Y, STEPS, TURNS, nd[0], nd[1], SIZE);

  foodini.drawPolyline(pts,false,false);

});
